29288

Spherical Roller Thrust Bearings
Spherical Roller Thrust Bearings

Product Information

Designations

29288

Boundary Dimensions

d 440 mm
D 600 mm
T,T3 95 mm
r (min.） 5 mm

Basic Load Ratings

Cr 2030000 N Basic dynamic load rating
C0r 10100000 N Basic static load rating

Speeds

Oil 670 min-1

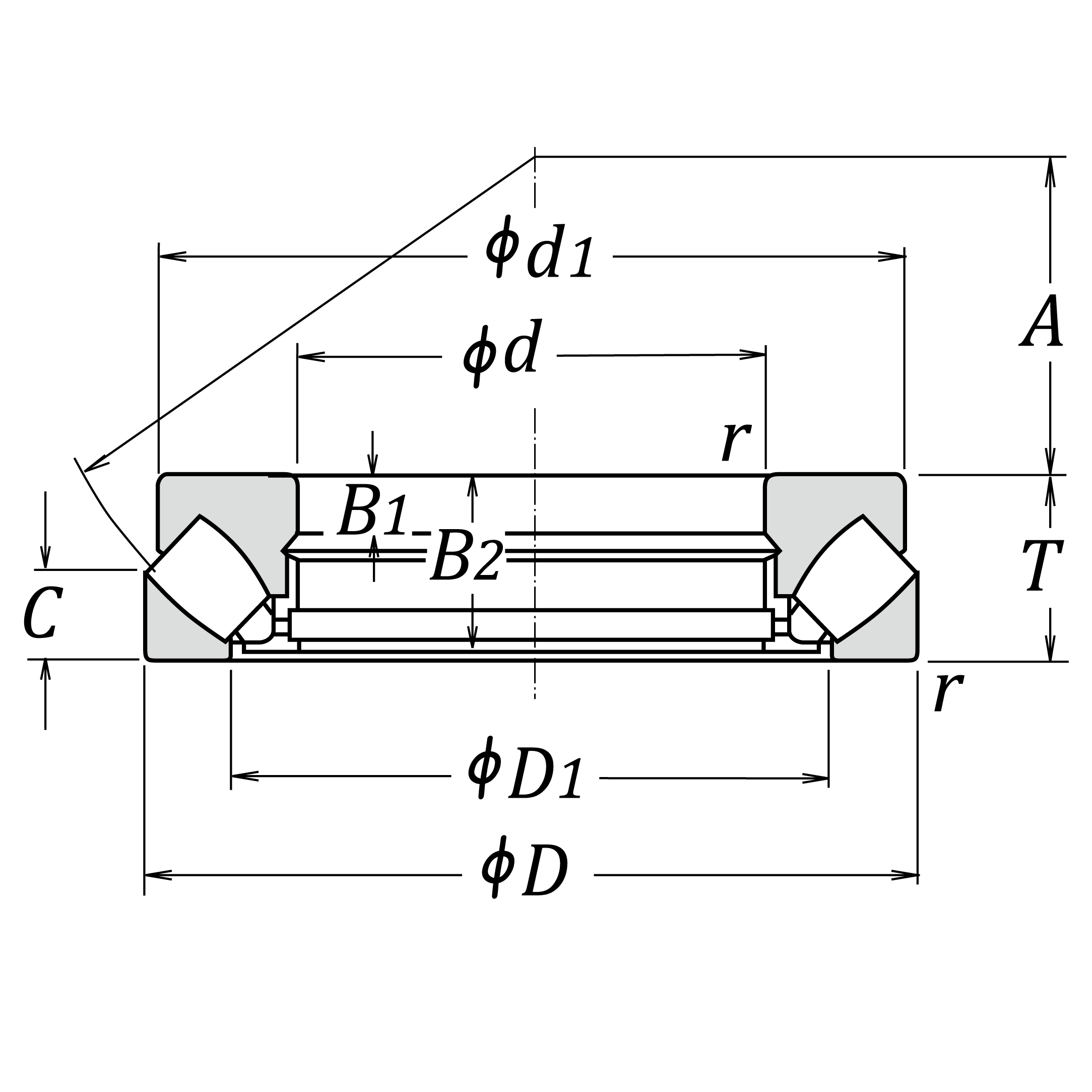

Dimensions

A 235 mm
B1 30 mm
B2 91 mm
C 49 mm
d1 575 mm
D1 508 mm

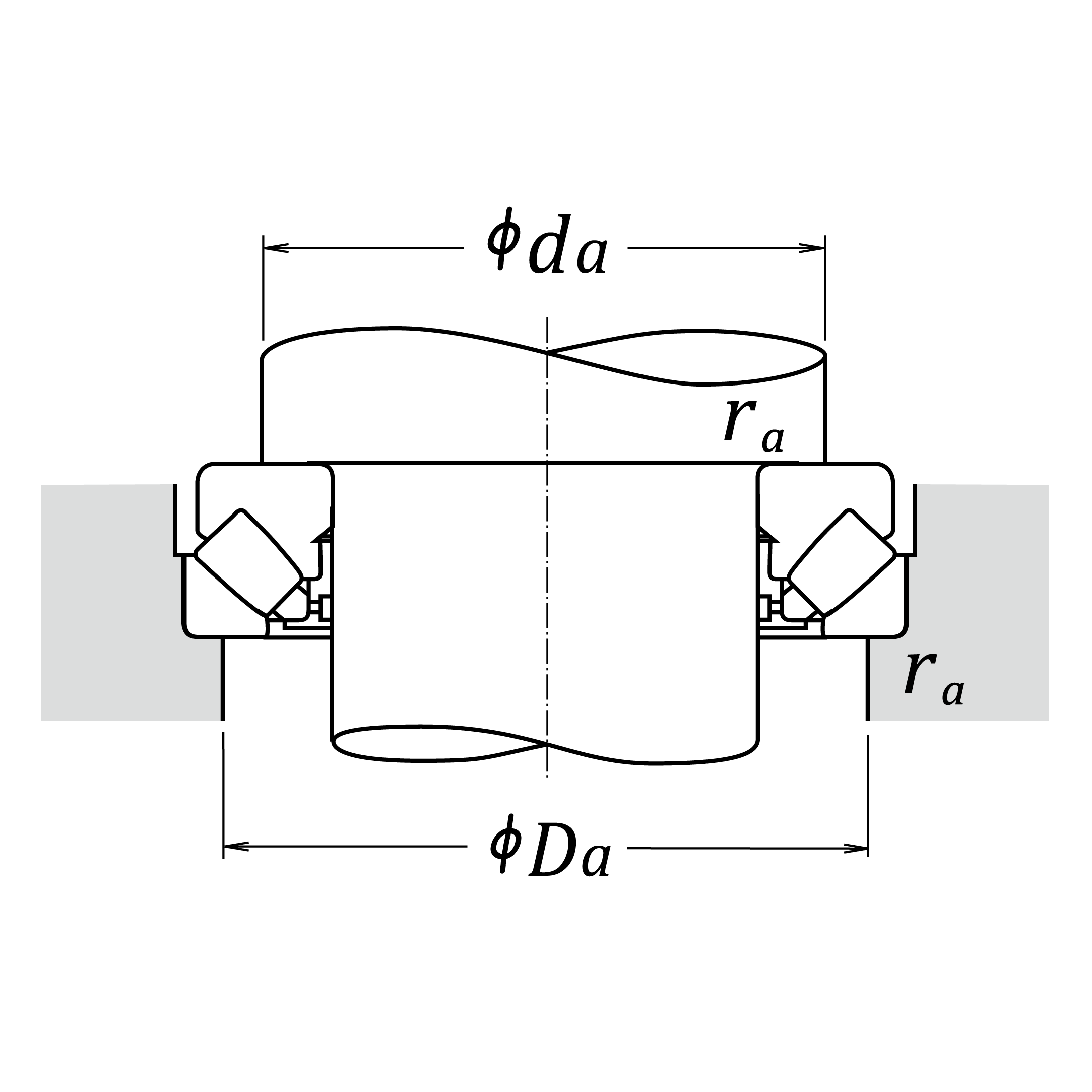

Abutment and Fillet Dimensions

da (min.) 510 mm
Da(max.) 545 mm
ra (max.) 4 mm

Calculation factors

Additional information

Mass

(approx.) 77 kg
