29330E

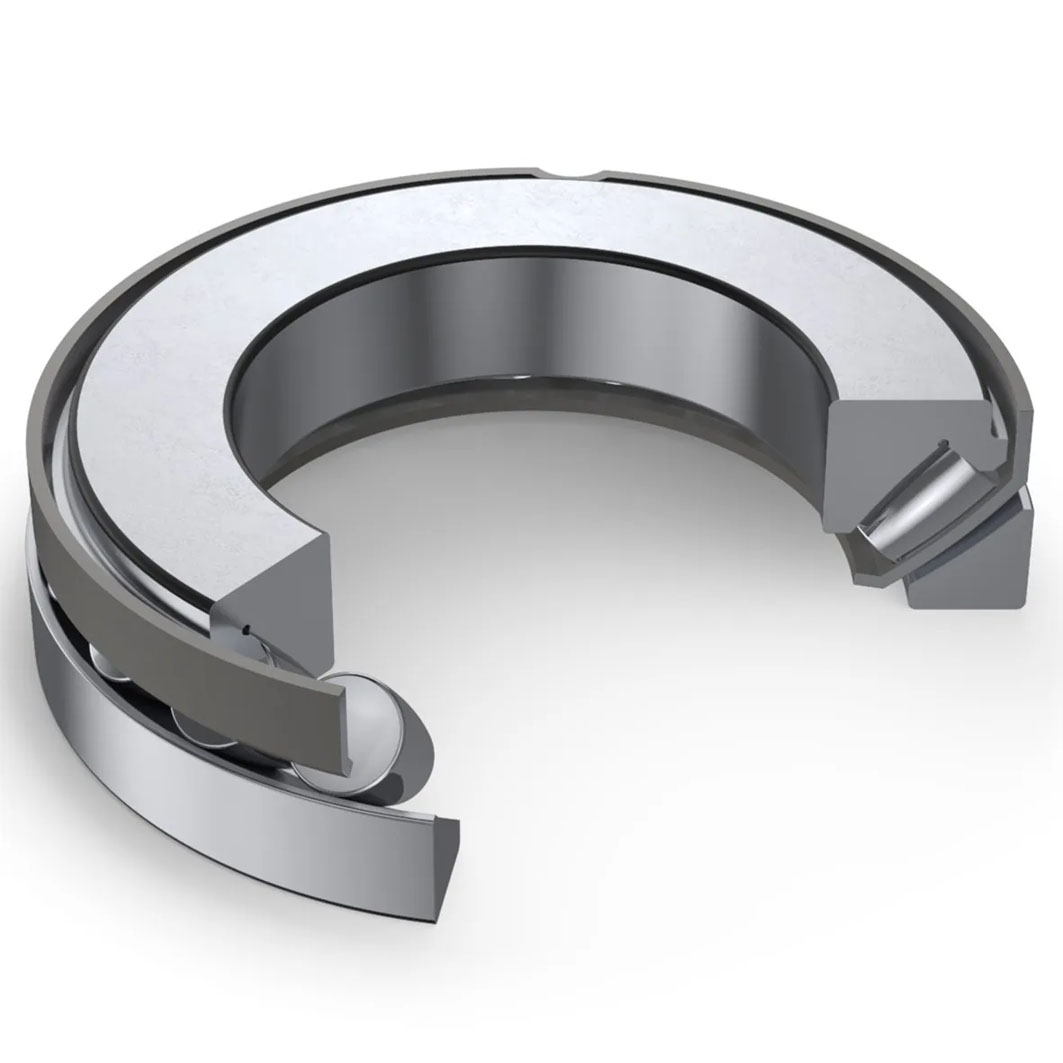

Spherical Roller Thrust Bearings
Spherical Roller Thrust Bearings

Product Information

Designations

29330E

Boundary Dimensions

d 150 mm
D 250 mm
T,T3 60 mm
r (min.） 2.1 mm

Basic Load Ratings

Cr 870000 N Basic dynamic load rating
C0r 2900000 N Basic static load rating

Speeds

Oil 1400 min-1

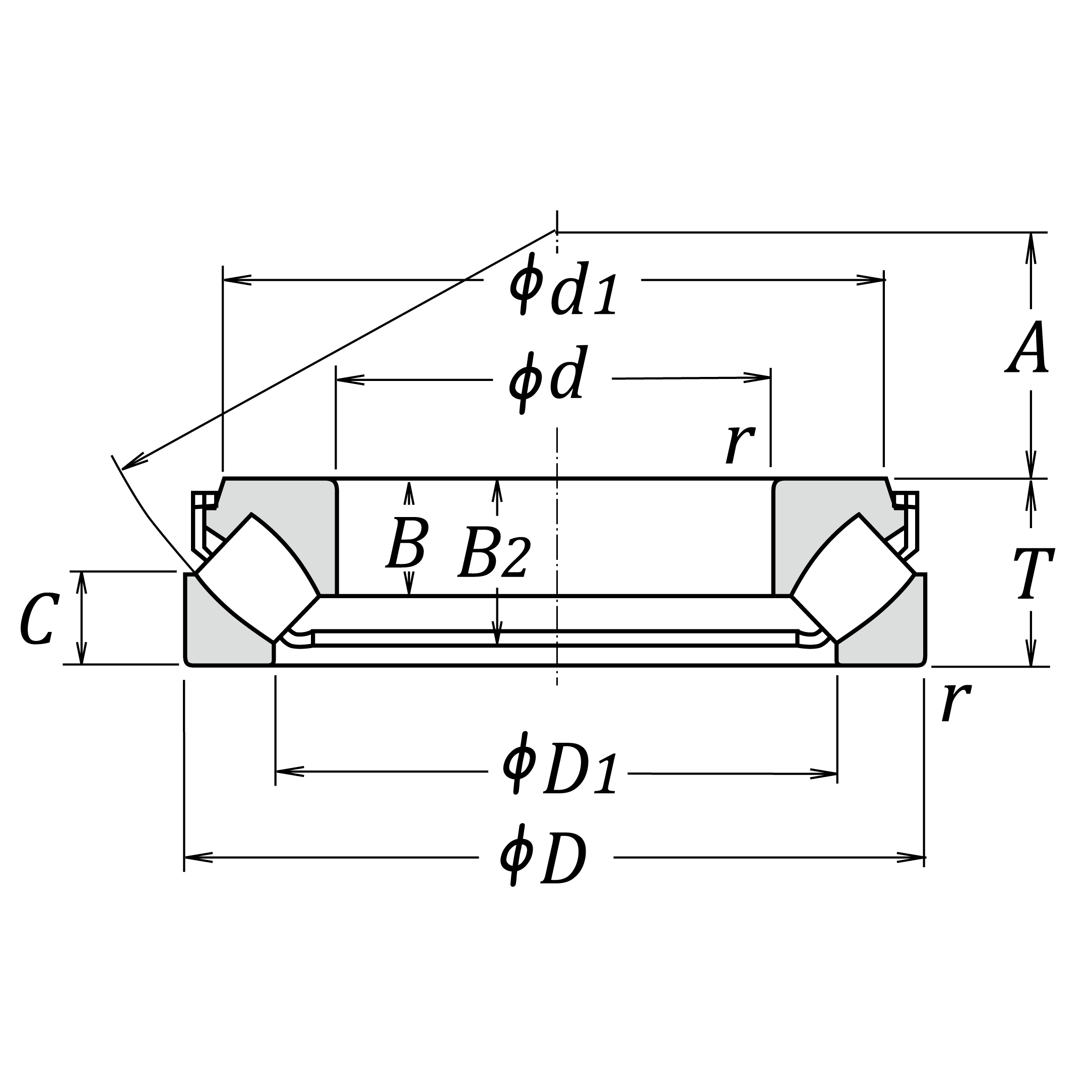

Dimensions

A 87 mm
B1 38 mm
B2 54.5 mm
C 29 mm
d1 224 mm
D1 190 mm

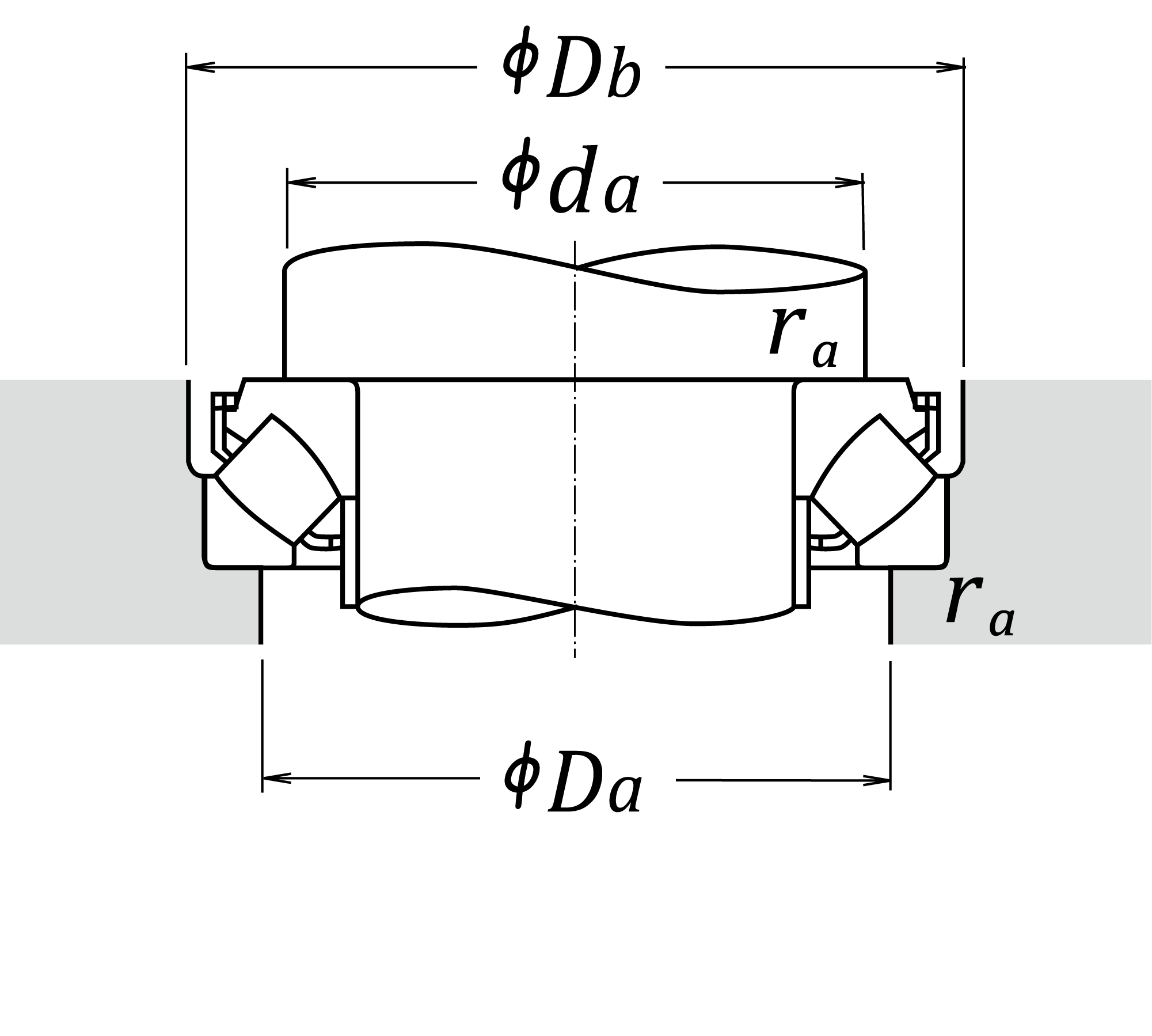

Abutment and Fillet Dimensions

da (min.) 195 mm
Da(max.) 215 mm
Db(max.) 254 mm
ra (max.) 2 mm

Calculation factors

Additional information

Mass

(approx.) 10.8 kg
