45TMP93

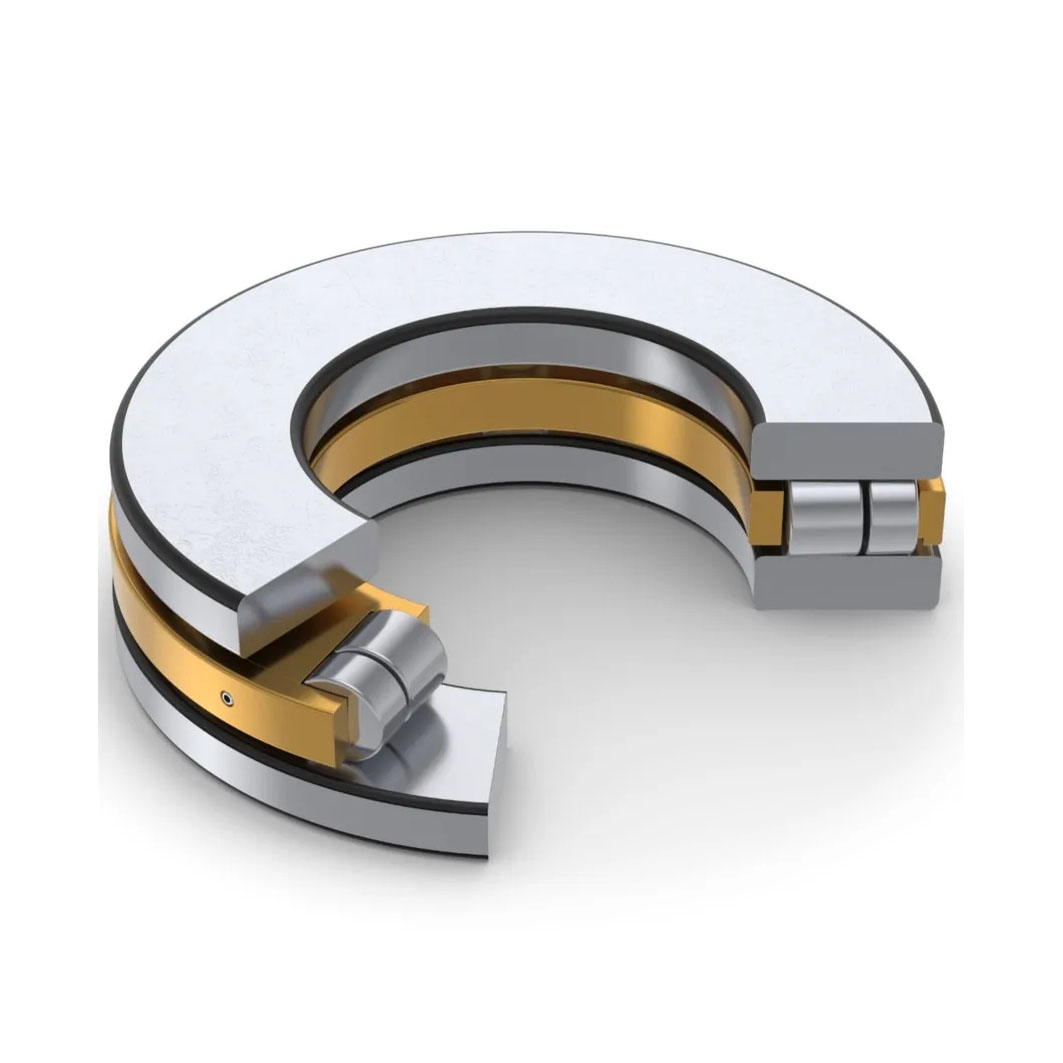

Cylindrical Roller Thrust Bearings
Cylindrical Roller Thrust Bearings

Product Information

Designations

45TMP93

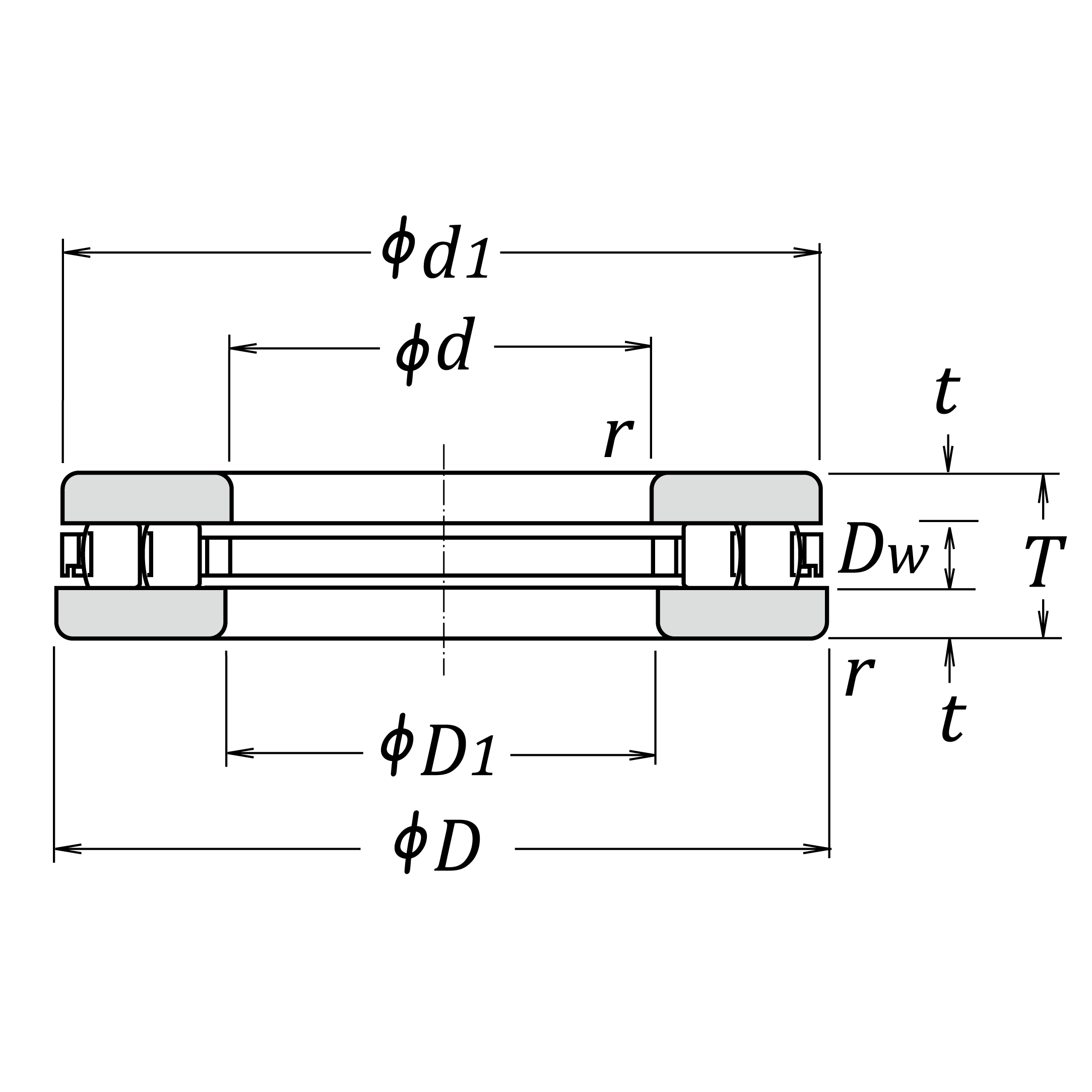

Boundary Dimensions

d 45 mm
D 85 mm
T,T3 24 mm
r (min.） 1 mm

Basic Load Ratings

Cr 71000 N Basic dynamic load rating
C0r 233000 N Basic static load rating

Speeds

Grease 1100 min-1
Oil 3400 min-1

Dimensions

Dw 8 mm
t 8 mm
d1 85 mm
D1 47 mm

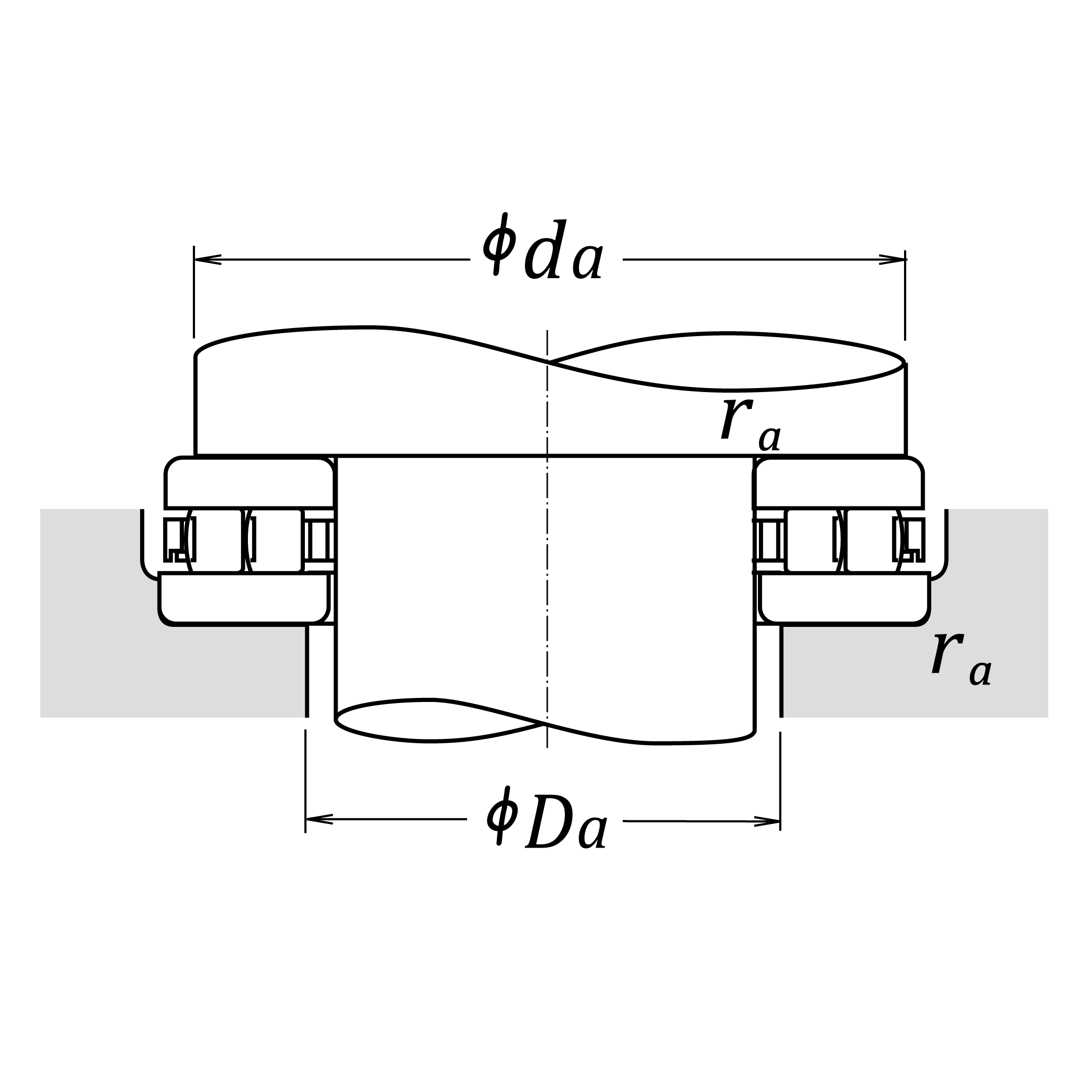

Abutment and Fillet Dimensions

da (min.) 78 mm
Da(max.) 53 mm
ra (max.) 1 mm

Calculation factors

Additional information

Mass

(approx.) 0.665 kg
