22216EAE4

Spherical Roller Bearings
Spherical Roller Bearings

Product Information

Designations

22216EAE4

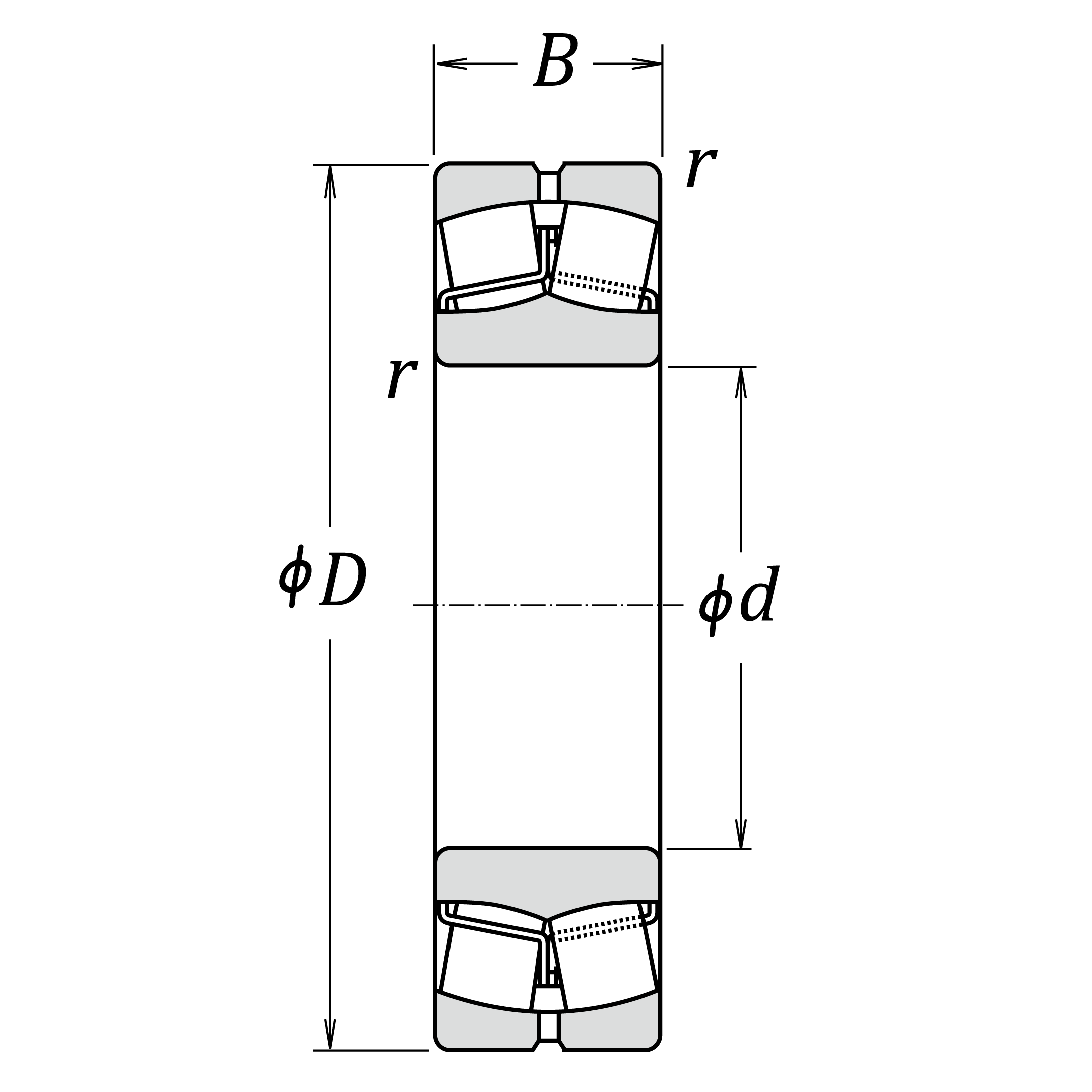

Boundary Dimensions

d 80 mm
D 140 mm
B 33 mm
r (min.） 2 mm

Basic Load Ratings

Cr 264000 N Basic dynamic load rating
C0r 275000 N Basic static load rating

Speeds

Thermal Speed Rating (Oil-bath) 4000 min-1
Mechanical (forced-circulation oil) 6000 min-1
Grease 3600 min-1

Dimensions

Abutment and Fillet Dimensions

da (min.) 90 mm
da (max.) 94 mm
Da (min.) 126 mm
Da(max.) 130 mm
ra (max.) 2 mm

Calculation factors

e 0.22
Y2 4.6
Y3 3.1
Y0 3

Additional information

Mass

(approx.) 2.01 kg
