RS-4834E4

Full Complement Cylindrical Roller Bearings Double-Row For Sheaves: Open Type
Full Complement Cylindrical Roller Bearings Double-Row For Sheaves: Open Type

Product Information

Designations

RS-4834E4

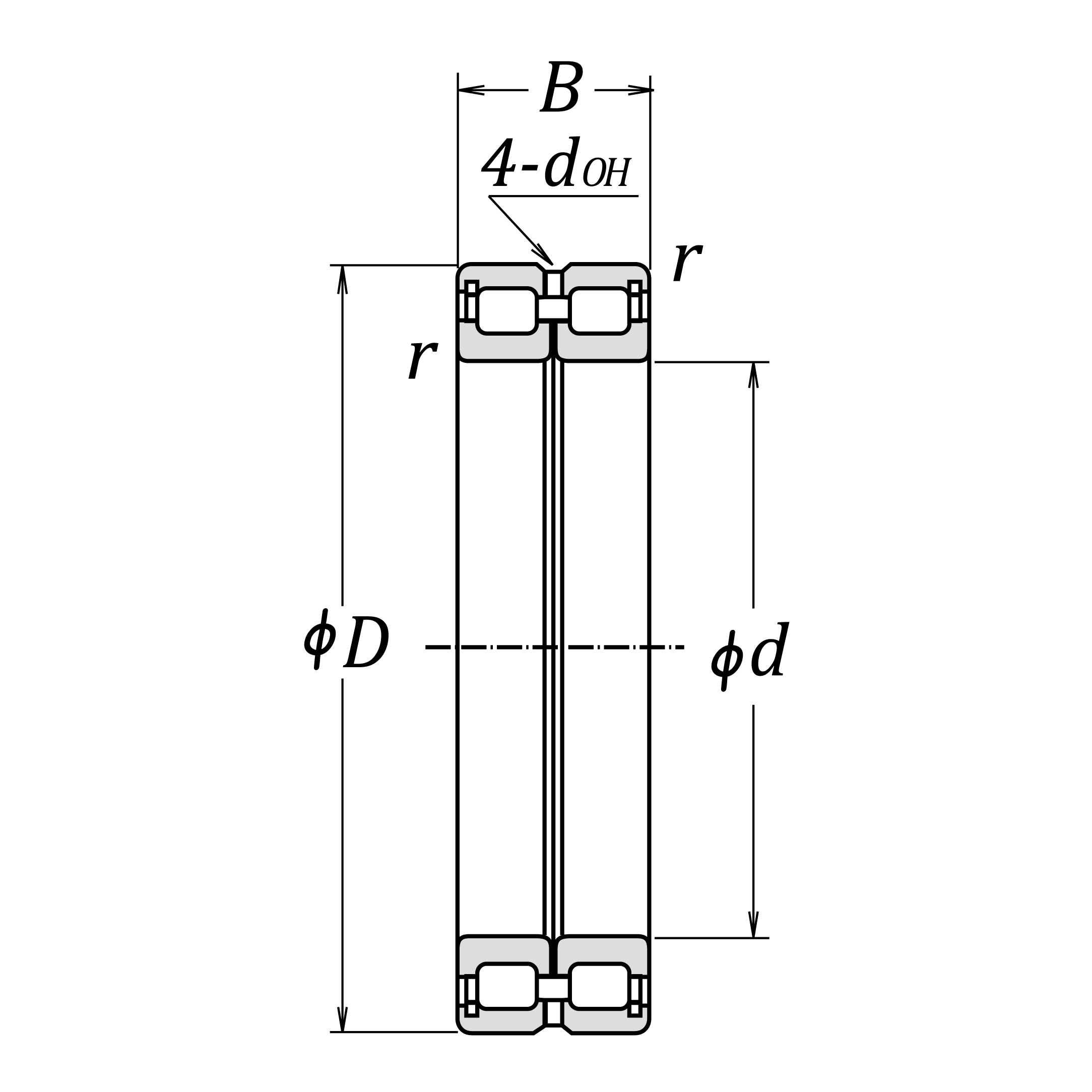

Boundary Dimensions

d 170 mm
D 215 mm
B 45 mm
r (min.） 1.1 mm

Basic Load Ratings

Cr 325000 N Basic dynamic load rating
C0r 650000 N Basic static load rating

Speeds

Grease 600 min-1
Oil 1200 min-1

Dimensions

doh 4 mm

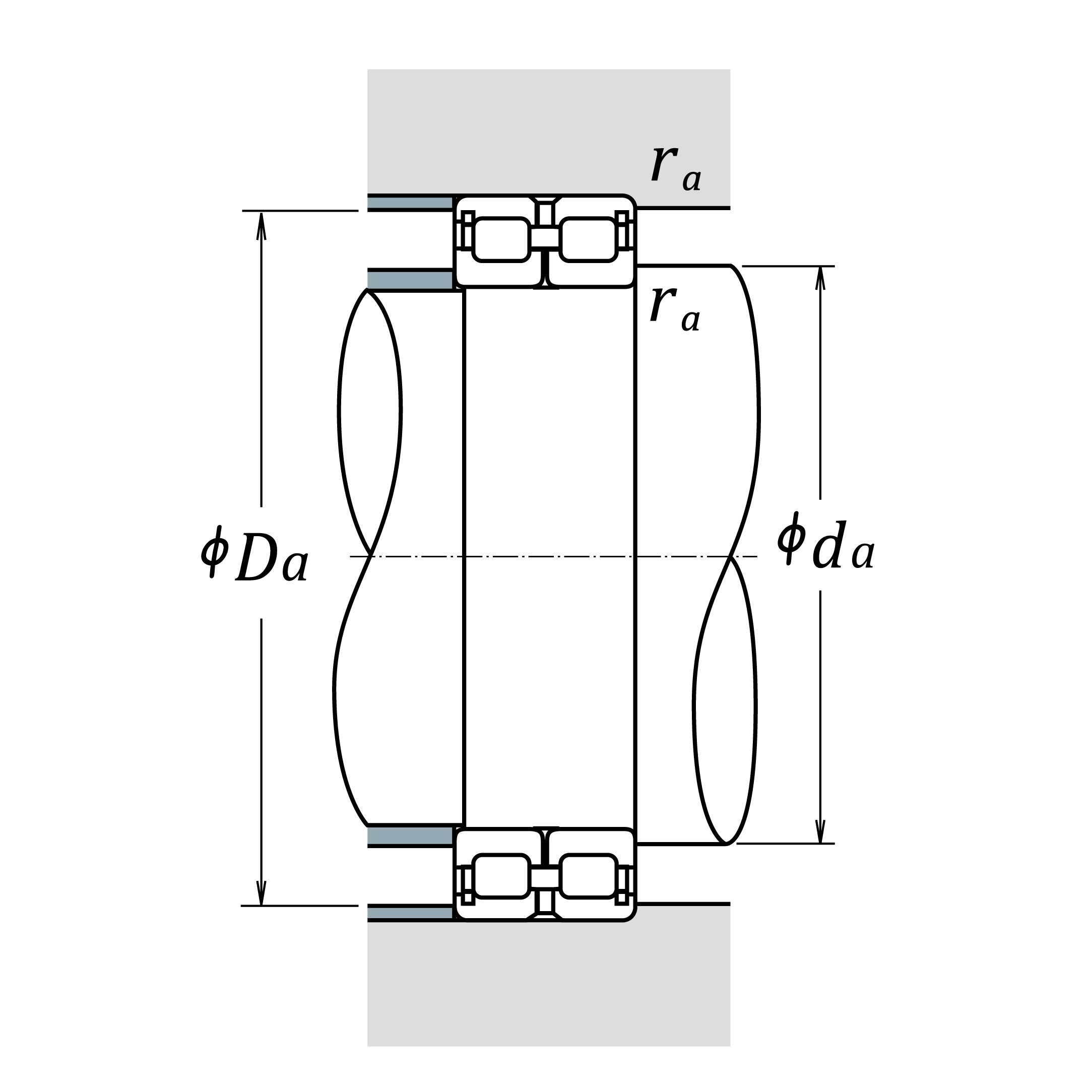

Abutment and Fillet Dimensions

da (min.) 176.5 mm
da (max.) 208.5 mm
ra (max.) 1 mm

Calculation factors

Additional information

Mass

(approx.) 4.1 kg
