7303BWDB

Matched Angular Contact Ball Bearings

Matched Angular Contact Ball Bearings

Product Information

Designations

7303BWDB

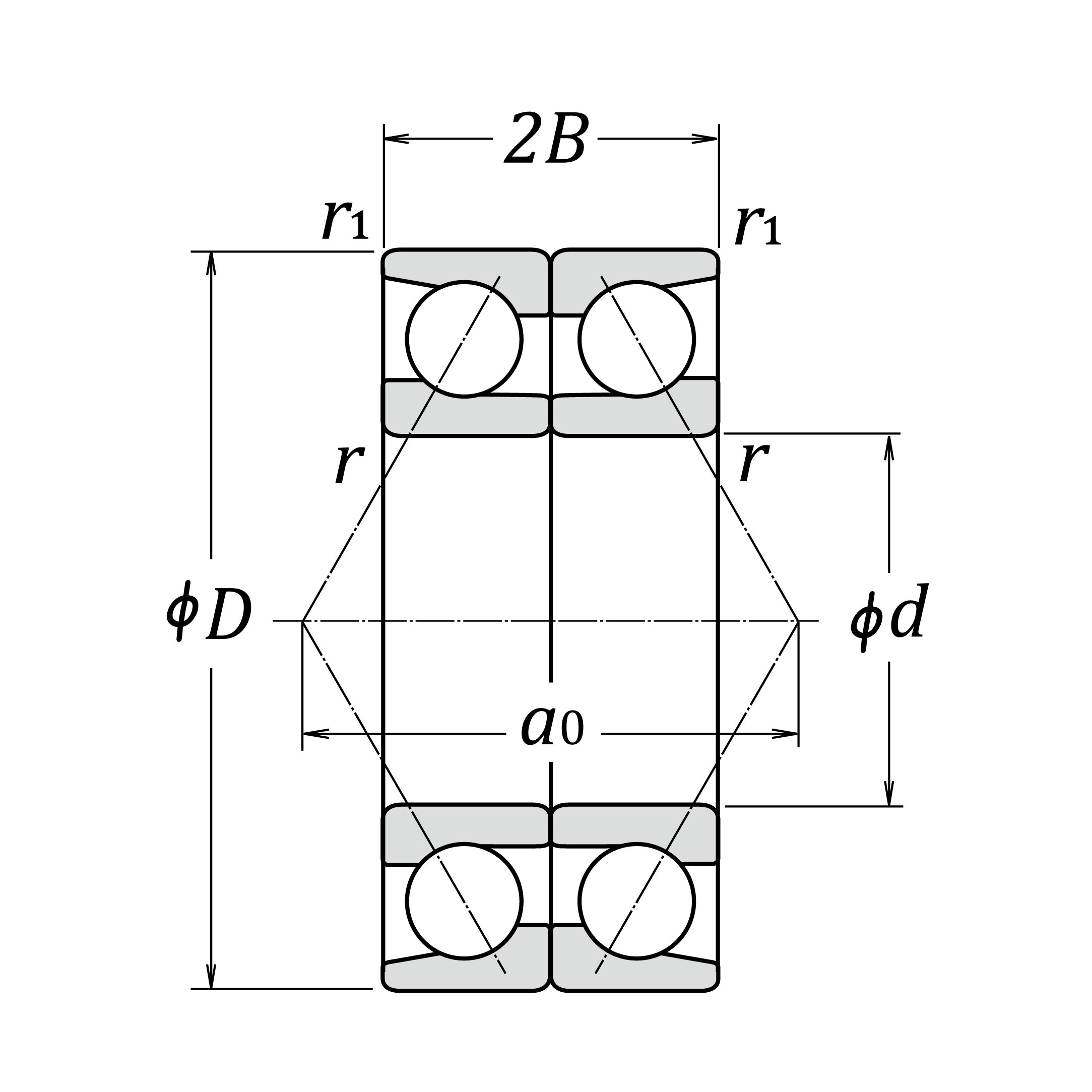

Boundary Dimensions

d	17	mm
D	47	mm
r (min.）	1	mm
r1 (min.)	0.6	mm

Basic Load Ratings

C_r	26400	N	Basic dynamic load rating
C_0r	16000	N	Basic static load rating

Speeds

Grease	8000	min-1
Oil	11000	min-1

Dimensions

a0

40.9

mm

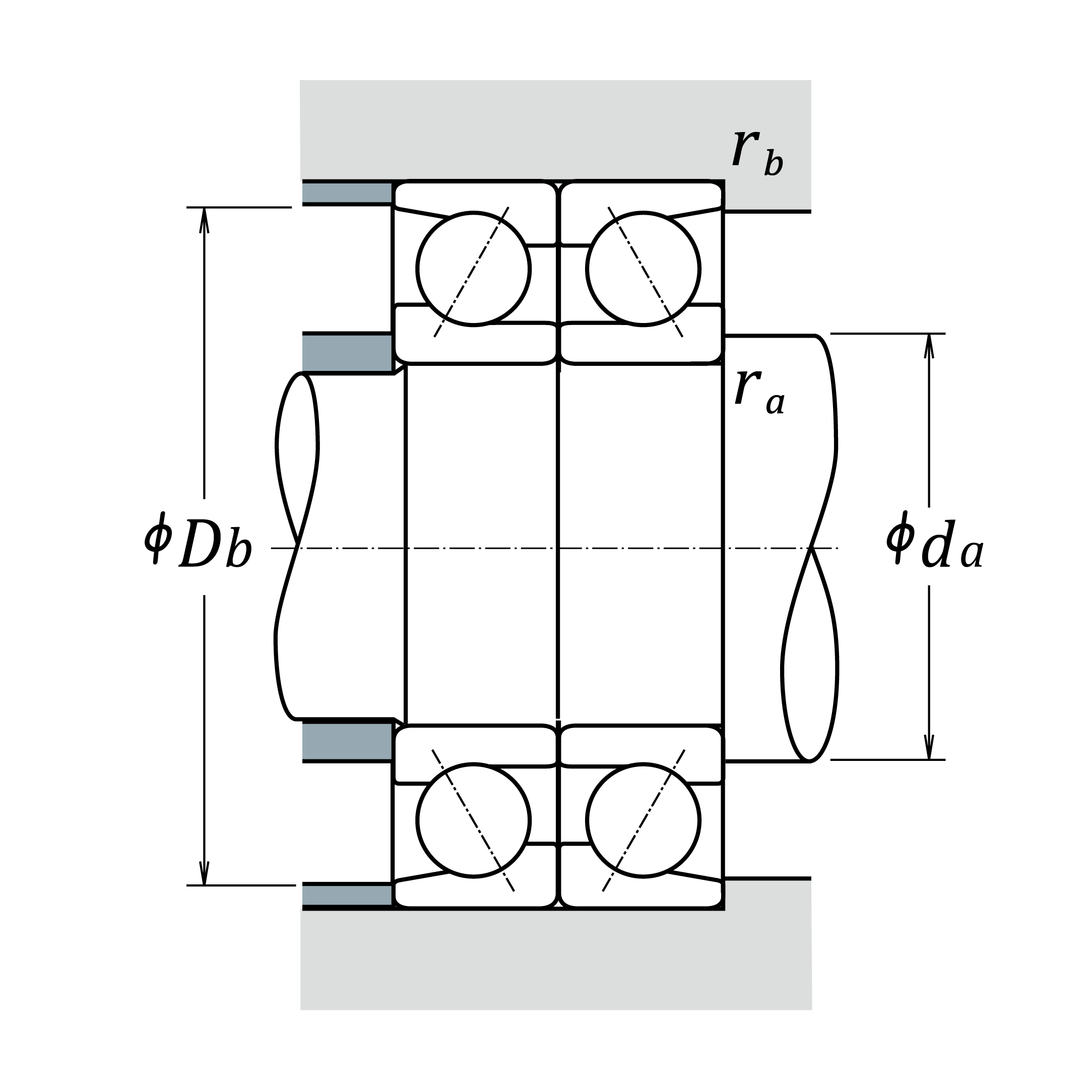

Abutment and Fillet Dimensions

da (min.)	23	mm
Db(max.)	42	mm
ra (min.)	1	mm
rb (max.)	0.6	mm

Calculation factors

Additional information

Mass

(approx.)

0.236

kg
