53213U

Single-Direction Thrust Ball Bearings
Single-Direction Thrust Ball Bearings

Product Information

Designations

53213U

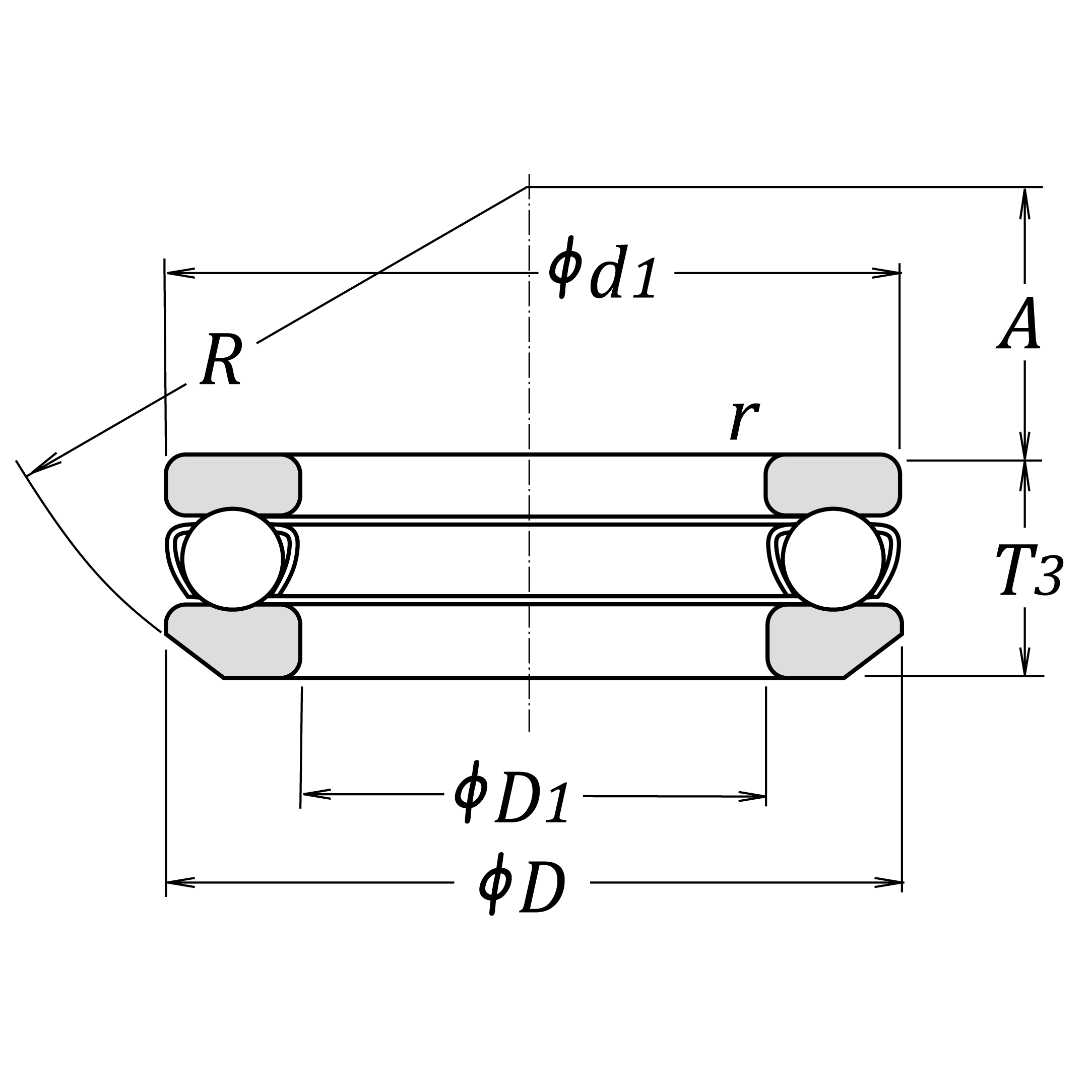

Boundary Dimensions

d 65 mm
D 100 mm
T,T3 28.7 mm

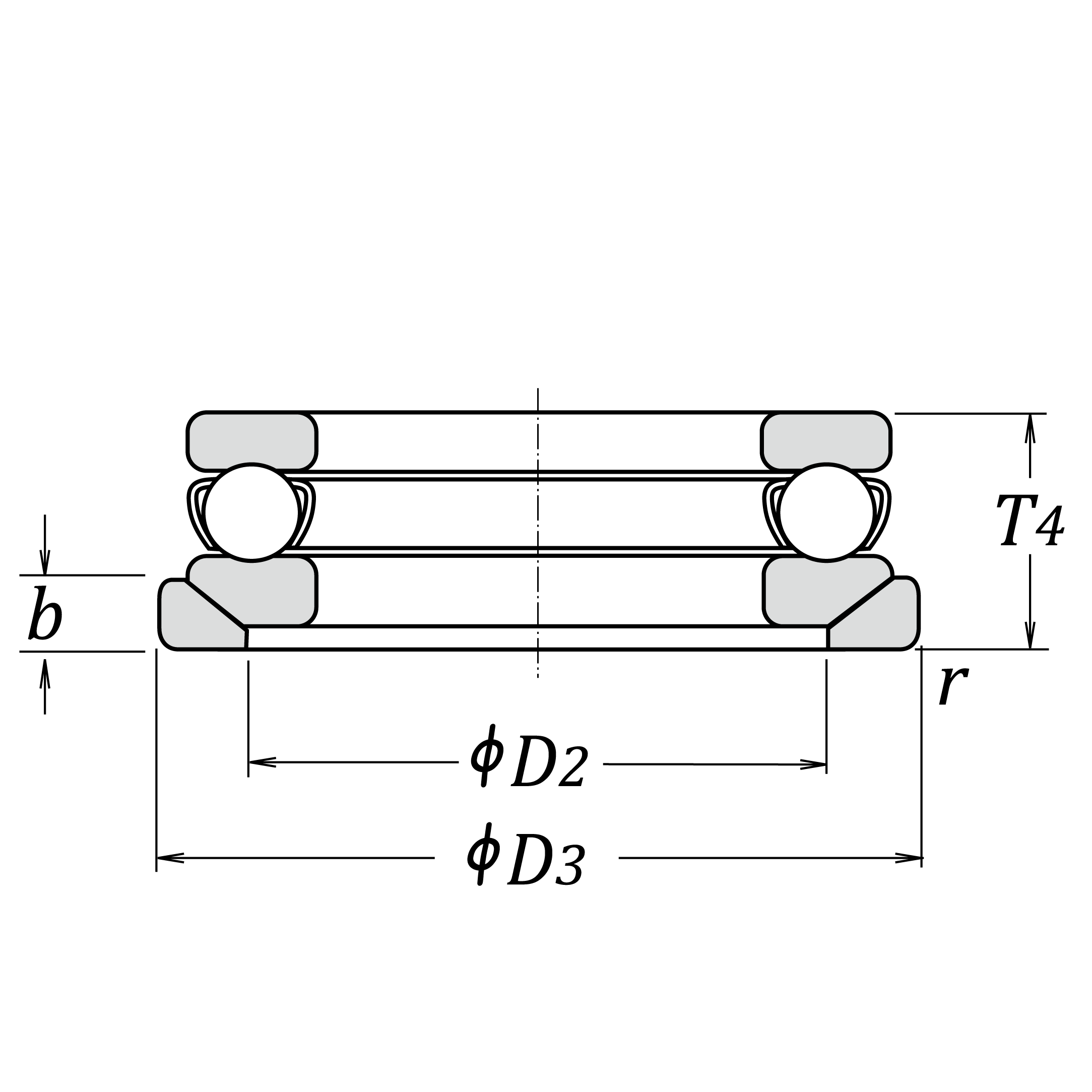

T4 32 mm

Basic Load Ratings

Cr 75500 N Basic dynamic load rating
C0r 189000 N Basic static load rating

Speeds

Grease 1900 min-1
Oil 2800 min-1

Dimensions

A 40 mm
R 80 mm

Abutment and Fillet Dimensions

da (min.) 86 mm
Da(max.) 79 mm
ra (max.) 1 mm

Calculation factors

Additional information

Mass

(approx.) 0.989 kg
