51309

Single-Direction Thrust Ball Bearings
Single-Direction Thrust Ball Bearings

Product Information

Designations

51309

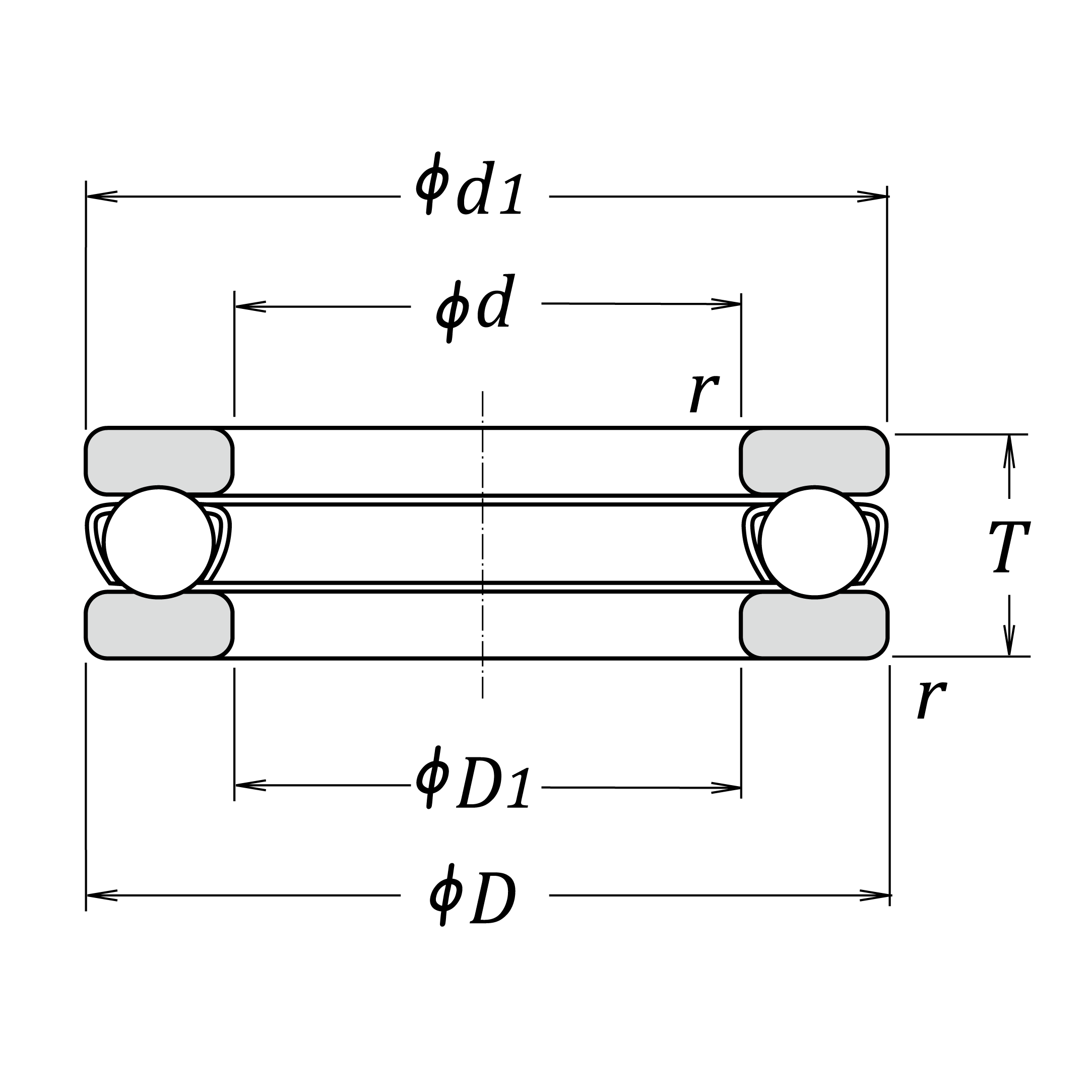

Boundary Dimensions

d 45 mm
D 85 mm
T,T3 28 mm
r (min.） 1 mm

Basic Load Ratings

Cr 80500 N Basic dynamic load rating
C0r 163000 N Basic static load rating

Speeds

Grease 2000 min-1
Oil 3000 min-1

Dimensions

d1 85 mm
D1 47 mm

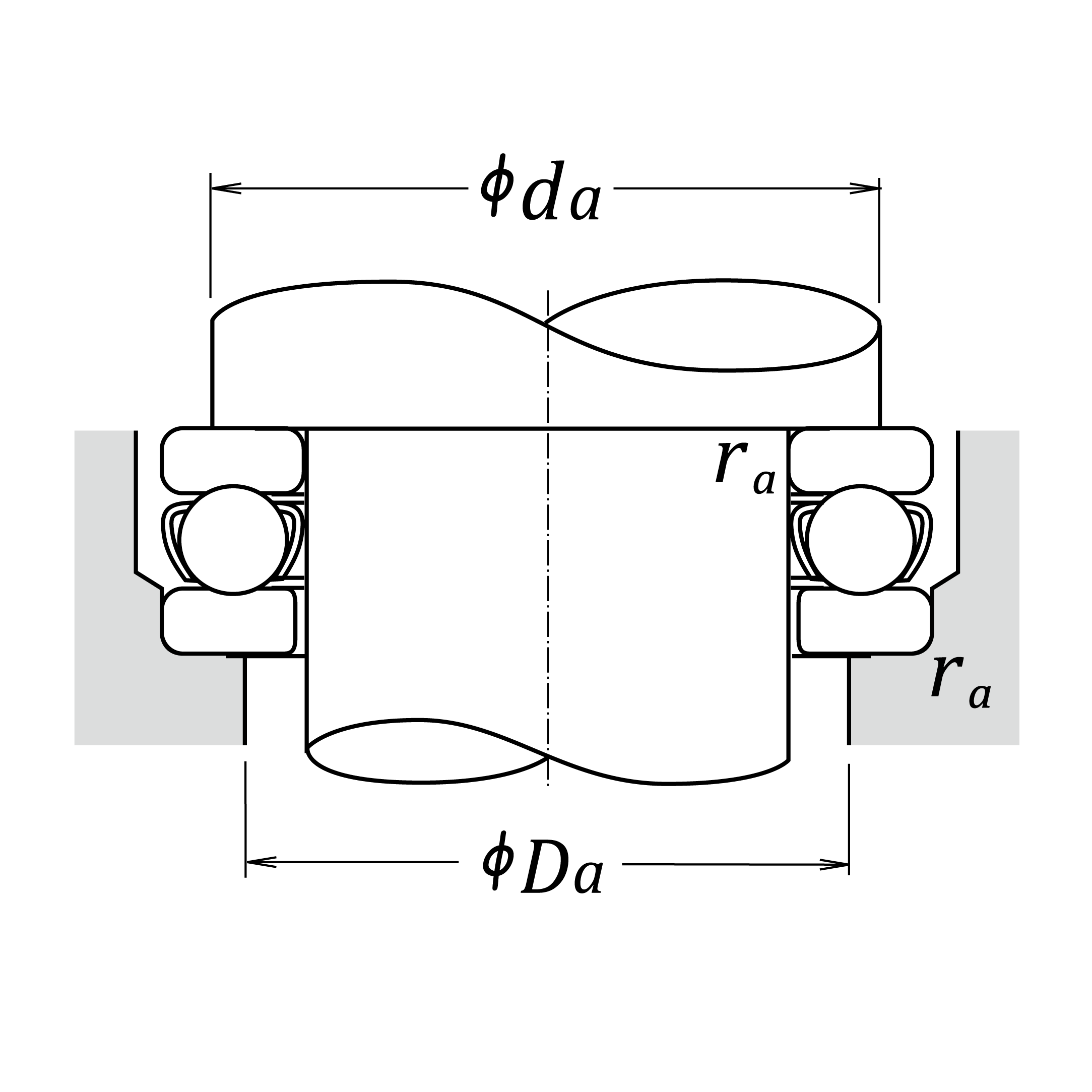

Abutment and Fillet Dimensions

da (min.) 69 mm
Da(max.) 61 mm
ra (max.) 1 mm

Calculation factors

Additional information

Mass

(approx.) 0.672 kg
