7202BWDT

Matched Angular Contact Ball Bearings
Matched Angular Contact Ball Bearings

Product Information

Designations

7202BWDT

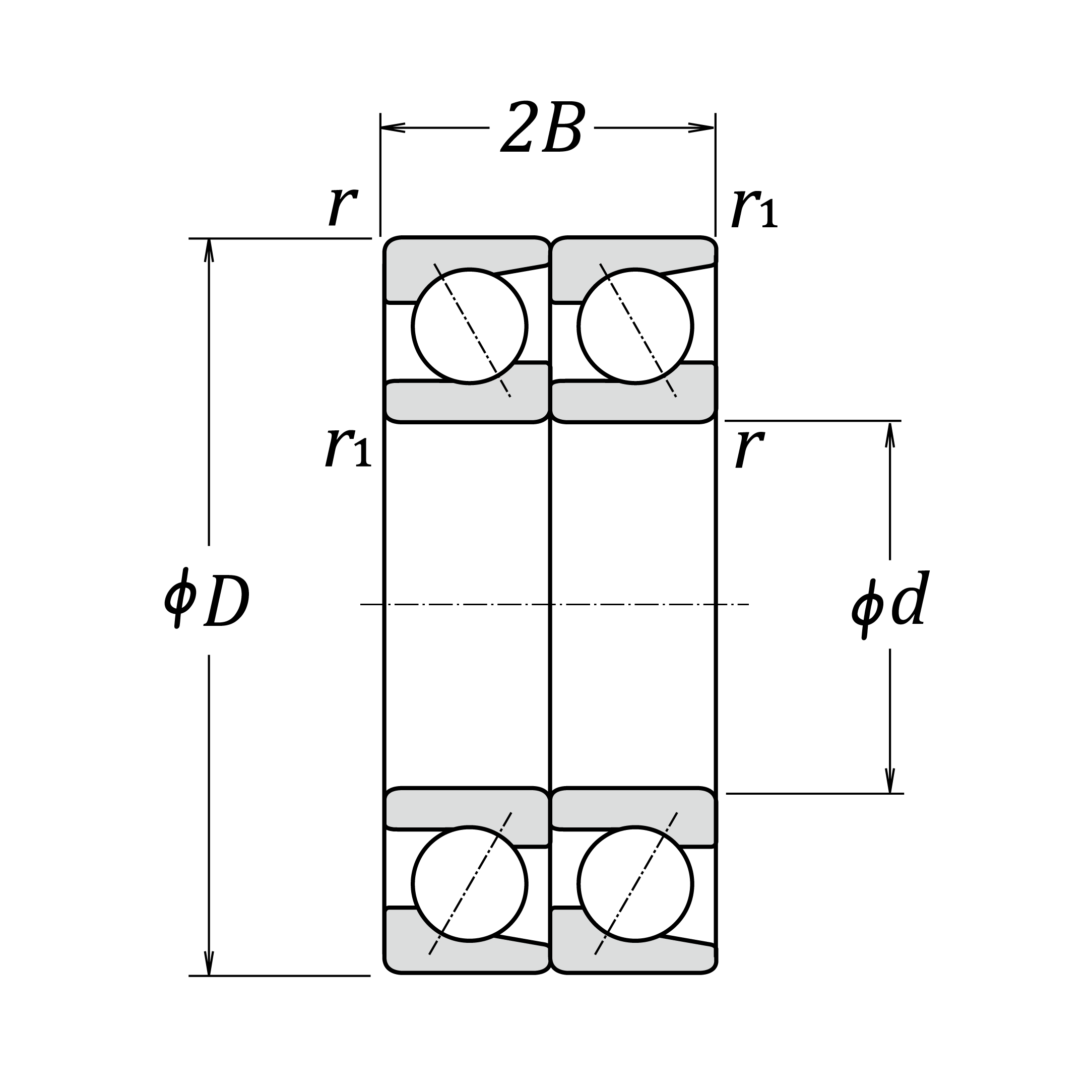

Boundary Dimensions

d 15 mm
D 35 mm
r (min.） 0.6 mm
r1 (min.) 0.3 mm

Basic Load Ratings

Cr 14200 N Basic dynamic load rating
C0r 8600 N Basic static load rating

Speeds

Grease 10000 min-1
Oil 14000 min-1

Dimensions

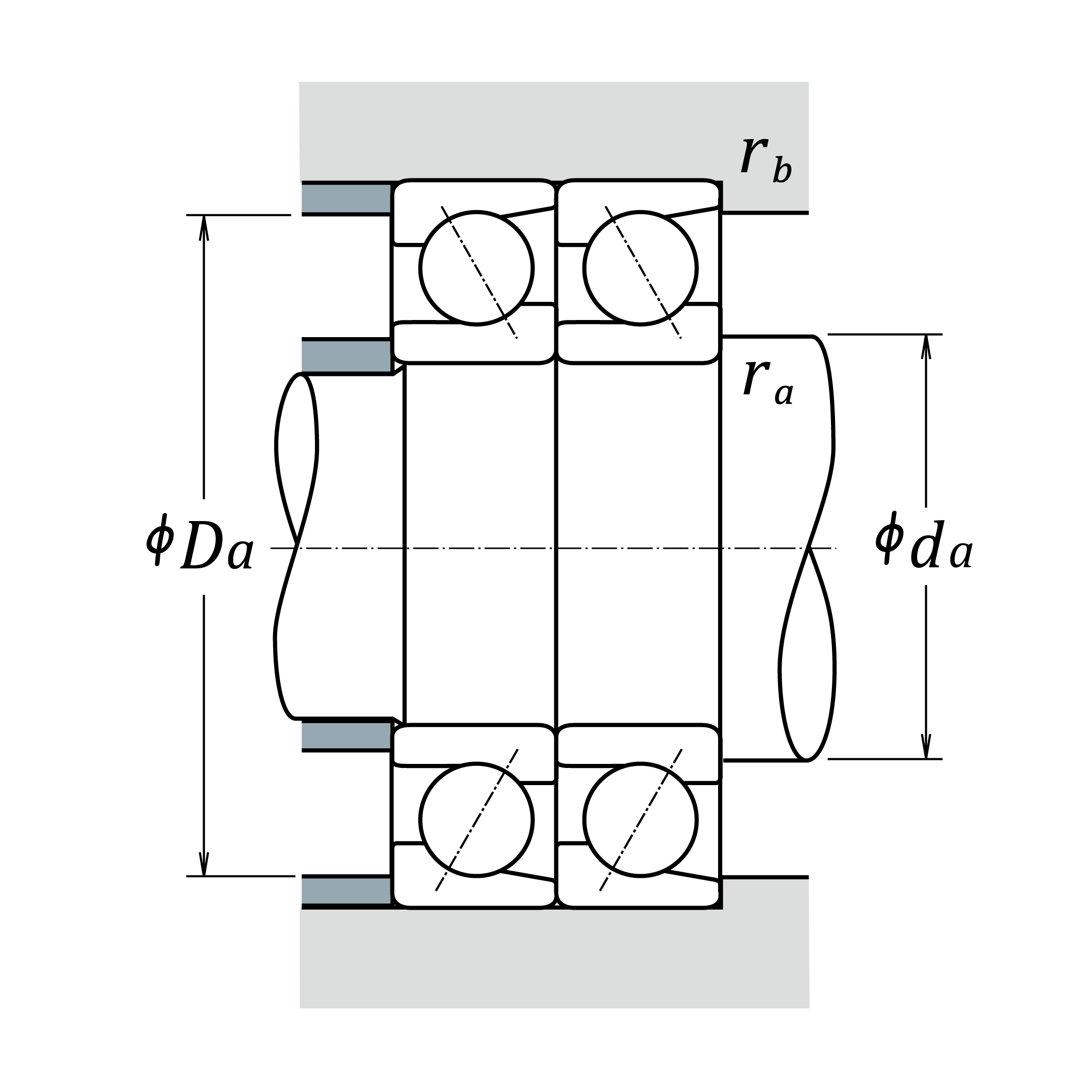

Abutment and Fillet Dimensions

da (min.) 20 mm
Da(max.) 30 mm
ra (min.) 0.6 mm

Calculation factors

Additional information

Mass

(approx.) 0.092 kg
